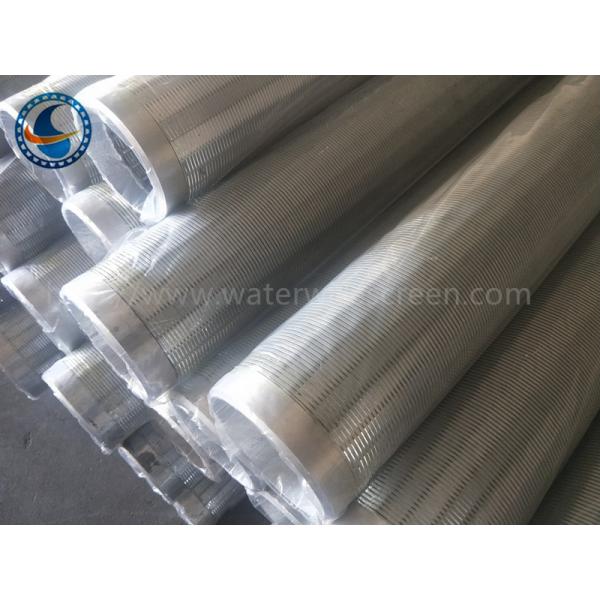

Low Cost Wire Wrapped Screen For Sand Control In Deep Wells

.

Specification:

Regular Specifications:

Material:Low carbon galvanized, Also can be stainless steel 205, 304, 316, 304L, 316L,321 etc.

O.D.: 4-1/2", 6-5/8", 8-5/8", 10-3/4", 12-3/4" inch and as request.

Slot: 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm in usual, also can be other sizes.

Discrepancy: + / - 0.05mm

Length: 50mm-6000mm, 2900,5800mm in usual, to fit container.

End Connection: welded rings or male/female thread couplings.

Wrap wire: 2*3.5mm, 2.2*3.5mm, 3*4.6mm ,3*5mm,3.2*6mm and so on.

Support rod: ø2.8mm, 3.0mm, 3.8mm, 4.0mm, 4.2mm, 4.5mm, 5.0mm and so on. Also can be Vee-shaped wire.

Special specification can be made according to your need.

Advantages:

Not easy to jam

the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.

Slot even

The CNC machine tools strictly control the gap between the wire, so that the gap is even.

Strong corrosion resistance

Stainless steel 304 have the high corrosion resistance

Application:

Wre wrap screen pipe specific continuous-slot construction aims to optimize flow rates, minimize clogging and help develop the water-bearing geological formations faster. It is best applied in the following situations:
Geological formations comprised of small, fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Large- and small-diameter deep wells

Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd. is located in Anping county which well known of "The hometown of wire mesh in China",emerged from Anping griddle screen factory in 2006 with a founding of 3.0 million RMB. It has a comparatively long history,a large scale production rate,and it is the only company among others in the same profession to have been certified by the IS09001 quality system authentication.

For several years,we never stop innovating and improving ourselves,we have introduced the advanced production line,collected the massive engineering research and managerial talent,now company moves to the XuTuan Wire Mesh Industry Zone,takes up six thousands square meters.

Our company produce and sell as following:Johnson wire screen,Water well screen,Vee wire screen, Well screen, Wire wrapped screen,Oil well screen,Wedge wire screen,Slot tube,Vee shaped wire welded screens,Strainer pipe,Mine sieving mesh, Spiral screen tube,Rod based continuous slot screen pipe,Wound screen cylinders,Drilling well screen,Vibrating sieve screen plate, Wedge wire panel, Screen flat,Water filter,Arc screen, Johnson screen nozzle, Water filter etc.

The products are used in the trades,such as ore choosing,petroleum,chemical industry,electron,transportation,plastics,food,architecture,traffic ,Water / oil well , Wastewater treatment etc.

Our products can be seen everywhere in China,as well as African countries, Middle East and the regions of Southeast Asia.

The president of our company sincerely hopes to build well trade relationship on the basis of mutual reciprocity, mutual benefit and friendly cooperation to create the nice future together.
