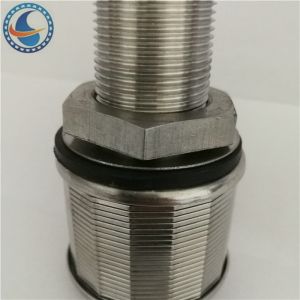

SS304 316l Johnson Vee Wire Screen Filter Nozzles

Product Description:

Filter nozzle also named screen nozzle is a kind of metal filter nozzle which is made of stainless steel and other materials. This filter nozzle adopts the wedge wire which is welded with support rods. It is a new generation of water treatment equipment that helps users solve the worries of original plastic filter nozzle. It solves the problems that plastic filter nozzle is poor in strength, pressure resistance, temperature, aging resistance. Besides, it is safe, reliable, integrated and costs low, used widely in filter industry. Our filter nozzle is ideal choice based on their combination of high strength, high open area and non-plugging slot design.
Stainless Steel Water Treatment Wedge Wire Filter Screen Nozzle is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

3.Types:

a. Single head V wire tube flowing filter nozzle
b. Double head V wire tube flowing filter nozzle
c. Long hand flowing pipe type flowing filter nozzle
d. Large long hand flowing pipe type flowing filter nozzle
e. Plate type flowing filter nozzle

Product Feature:

Metal construction.
Excellent roundness.
Great flow area.
High mechanical load capacity.
High precision slot width.
Pressure and temperature resistance.
Anti-corrosion, anti-aging.
Safe, reliable.
Environment friendly.
Easy installation.
Long service time.

Application:

The filter nozzle can be used at the filter equipment for the filtration of water, petrol resin and other medium. It can be also used in water treatment, water soft, conversion of sea water into fresh water, the filter of food chemistry and other filter industry.
Widely used in water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin trap
