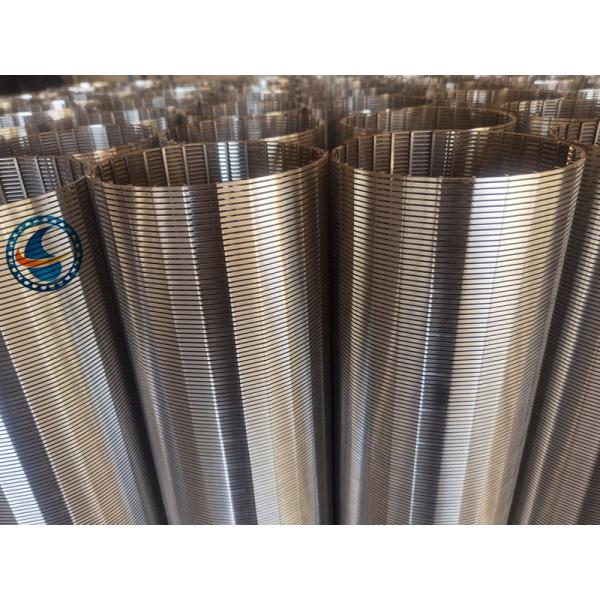

2507 Duplex Steel Cylinder Wedge Wire Screen With 0.13±0.02mm Slot

Cylinder Wedge wire screen pipe is known as profile wire screen, V- wire screen, Johnson screen and water well screen.

It is created by wrapping a V- shaped profile wire cylindrical around longitudinal placed support rods.

Each intersection of the profiles wire and support rod is well welded.

It has a smooth surface, resistant to clogging and a greater structural strength.

Welded wedge wire screen is the most advanced product of modern technology used in many industries for screening, filtration, dewatering, drying and cleaning.

The numerous combinations of profile wires and support rods, and the wide range of apertures between the wires and rods allows us to design a screen according your required specification.

Cylinder Wedge Wire Screen Specification:

Cylinder Wedge Wire Screen Application:

Separating, Sizing; Straining, De-watering, Filtering, Drying, Water intake, Media retention.

Cylinder wedge wire screens are available for both externally-fed (flow from outside to inside) and internally feed applications.

Externally-fed cylinders can be manufactured without requiring a weld seam up to about 52” OD, larger diameters must be fabricated. Internally-fed cylinders are fabricated to customer’s requirements.

1. End view of external-fed cylinder.
2. Internally-fed fabricated rotary screen cylinder.
3. Internally-fed rotary screen cylinder.
4. Reinforced externally-fed rotary screen.
5. Externally-fed rotary screen with flanges.
6. Internally-fed rotary screen with flights.

Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd. is located in Anping county which well known of "The hometown of wire mesh in China",emerged from Anping griddle screen factory in 2006 with a founding of 3.0 million RMB. It has a comparatively long history,a large scale production rate,and it is the only company among others in the same profession to have been certified by the IS09001 quality system authentication.

For several years,we never stop innovating and improving ourselves,we have introduced the advanced production line,collected the massive engineering research and managerial talent,now company moves to the XuTuan Wire Mesh Industry Zone,takes up six thousands square meters.

Our company produce and sell as following:Johnson wire screen,Water well screen,Vee wire screen, Well screen, Wire wrapped screen,Oil well screen,Wedge wire screen,Slot tube,Vee shaped wire welded screens,Strainer pipe,Mine sieving mesh, Spiral screen tube,Rod based continuous slot screen pipe,Wound screen cylinders,Drilling well screen,Vibrating sieve screen plate, Wedge wire panel, Screen flat,Water filter,Arc screen, Johnson screen nozzle, Water filter etc.

The products are used in the trades,such as ore choosing,petroleum,chemical industry,electron,transportation,plastics,food,architecture,traffic ,Water / oil well , Wastewater treatment etc.

Our products can be seen everywhere in China,as well as African countries, Middle East and the regions of Southeast Asia.

The president of our company sincerely hopes to build well trade relationship on the basis of mutual reciprocity, mutual benefit and friendly cooperation to create the nice future together.
